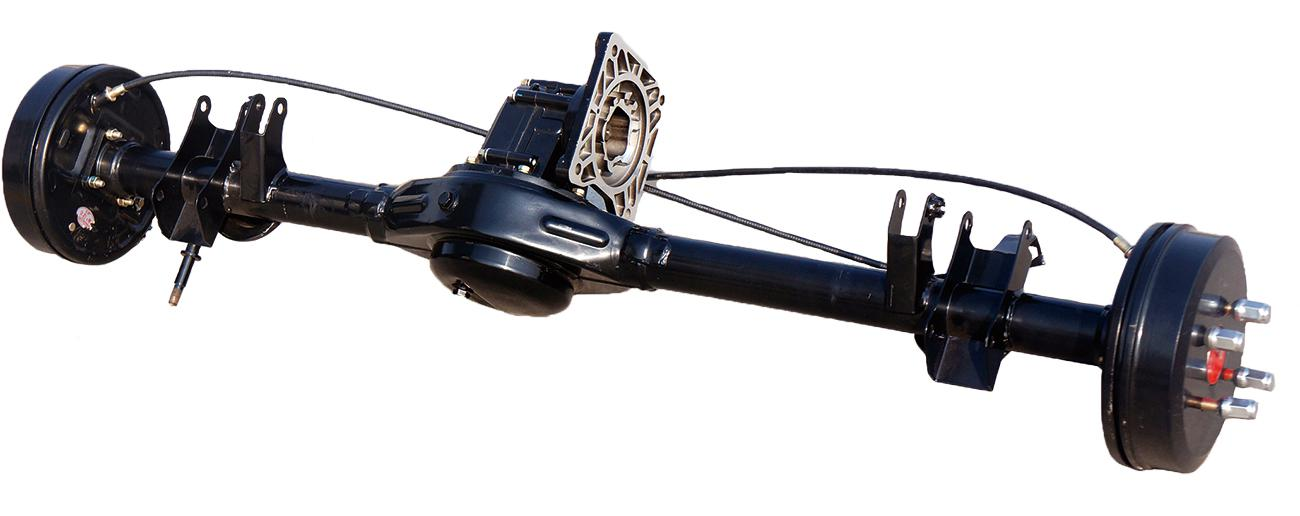

Rear axle for light load vehicle162


Technical parameters: 1. The gearbox is connected with electric motors’ output shaft which is 18 teeth. The motor’s assembling holes’ quantity is three or hole. 2. The gear ratio is 7.96/10.18/11.8/12.4:1. We can accept the customized dimension according to customer requirements 3. Braking method: ∅ 180mm, ∅ 220 drum brake and disc brake.

Description


Technical parameters:

1. The gearbox is connected with electric motors’ output shaft which is 18 teeth. The motor’s assembling holes’ quantity is three or hole.

2. The gear ratio is 7.96/10.18/11.8/12.4:1. We can accept the customized dimension according to customer requirements

3. Braking method: ∅ 180mm, ∅ 220 drum brake and disc brake.

4. Rated load: 1500kg

5.Max. Speed:80Km/h

6. Applicable models: electric tricycle, electric golf cart, electric passenger car, electric logistics car, electric sightseeing car and so on.

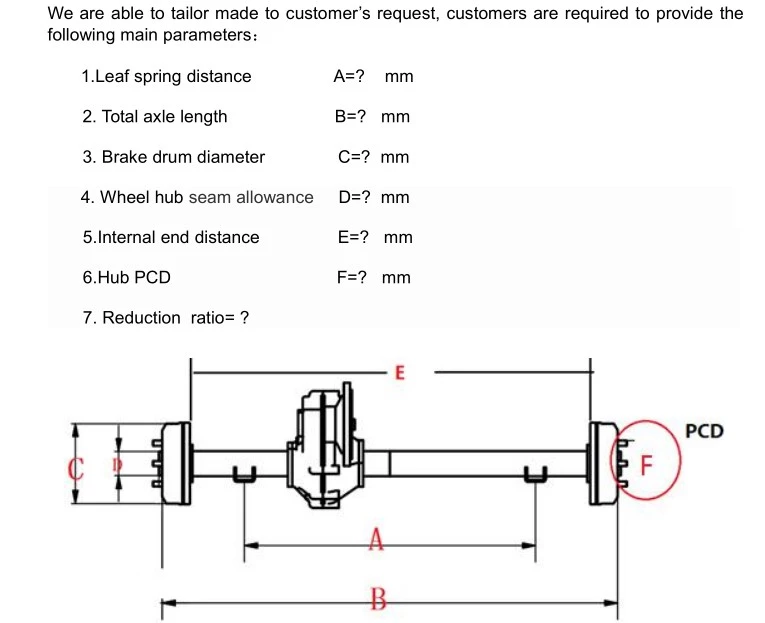

7. We accept the customized products according to customers’ requirements.
