RG-136series EV reducer

Category:

Gearbox for new energy vehicle

Message

Description

RG136 series reducer meets the needs of mini electric cars with its superior quality and performance. The structure is compact and simple,the main reducer and differential device form a whole. The shell adopts die-casting technology and high-quality ADC12 Aluminum alloy material. The reducer is with delicate appearance and light weight. The torque is suitable for medium and low-grade electric cars. The gears adopts constant mesh helical gear transmission. The gear design applies the optimization design of large coincidence degree to ensure the requirements of stable gear transmission, low noise, high transmission efficiency and long service life.The high-speed shaft oil seal adopts high-quality FKM fluororubber sealing ring to ensure the sealing performance during high-speed operation;

Model	RG136B-00
Structure	Two stage parallel shaft structure, including main reducer differential
Gear ratio	7.96：1	10.22：1	11.87：1	12.84：1	13.95：1
Rated input torque	10N.m
Max. input torque	60N.m
Rated input speed	3000r/min
Max. input speed	6000r/min

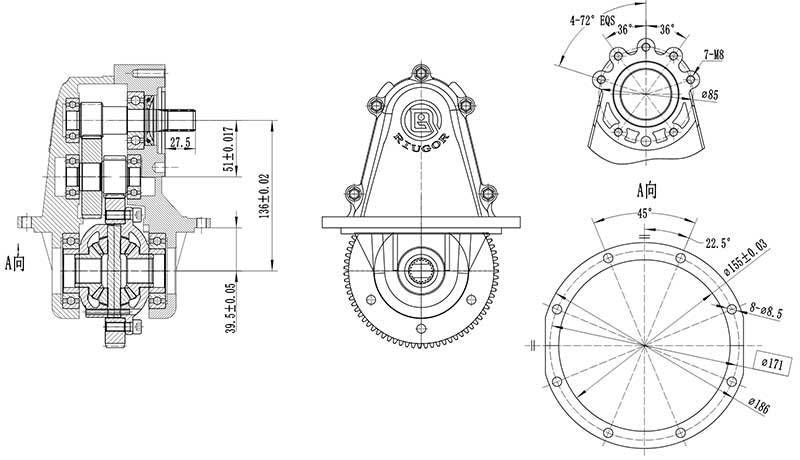

Center distance	136mm
Weight	7.2KG
Dimension(LWH)	356174174mm
Input spline data	Outside spline m1 z18 α20° JIS D2001
Output spline data	Inside spline m1 z22 α20° JIS D2001
Supporting scope	The product is suitable for new energy vehicles with micro 3kw-5.5kw rear axle transmission structure; Applicable to all kinds of mini electric four-wheel vehicles, field vehicles, police patrol vehicles and sightseeing vehicles
