RG-136 series EV reducer


RG136 series reducer meets the needs of mini electric cars with its superior quality and performance. The structure is compact and simple,the main reducer and differential device form a whole. The shell adopts die-casting technology and high-quality ADC12 Aluminum alloy material.

Description


RG136 series reducer meets the needs of mini electric cars with its superior quality and performance. The structure is compact and simple,the main reducer and differential device form a whole. The shell adopts die-casting technology and high-quality ADC12 Aluminum alloy material. The reducer is with delicate appearance and light weight. The torque is suitable for medium and low-grade electric cars. The gears adopts constant mesh helical gear transmission. The gear design applies the optimization design of large coincidence degree to ensure the requirements of stable gear transmission, low noise, high transmission efficiency and long service life.The high-speed shaft oil seal adopts high-quality FKM fluororubber sealing ring to ensure the sealing performance during high-speed operation;


Model RG136A-00
Structure Two stage parallel shaft structure, including main reducer differential
Gear ratio 7.96:1 10.22:1 11.87:1 12.84:1 13.95:1
Rated input torque 10N.m
Max. input torque 60N.m
Rated input speed 3000r/min
Max. input speed 6000r/min

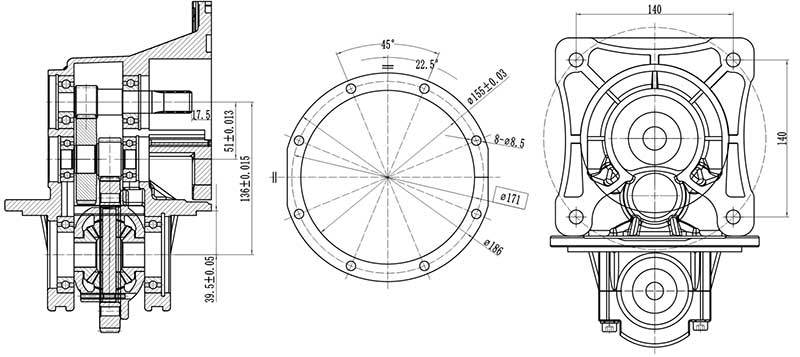

Center distance 136mm
Weight 8KG
Dimension(L*W*H) 295*184*184MM
Input spline data Outside spline m1  z18  α20° JIS D2001
Output spline data Inside spline m1  z22  α20° JIS D2001
Supporting scope The product is suitable for new energy vehicles with micro 3kw-5.5kw rear axle transmission structure;
Applicable to all kinds of mini electric four-wheel vehicles, field vehicles, police patrol vehicles and sightseeing vehicles
